Section titled “The downloads and the DXF view”What downloads
Section titled “What downloads”- the cutting DXF — your parts placed, exact geometry, whole curves; the “Draw sheet outline” option adds the stock rectangle so the machine sees the boundary;
- the rewritten

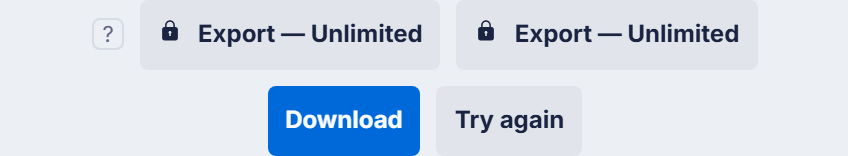

.jobif you dropped one — one file per sheet, ready to reopen in SheetCam, your hand-moved start points kept byte for byte; - the report (CSV) — sheets, densities, offcuts, for your records or your quoting software; it takes a plan — the “Export” padlocks on screen say so;
- “download all” — one click for a whole multi-sheet result.
The DXF view — read before cutting
Section titled “The DXF view — read before cutting”The result shows in colour; the switch toggles the DXF view: the cutting file itself, as your machine will read it, rendered sheet by sheet to check a detail, a lead-in, a contour. What you see there is what you download.
